Aston Martin Vantage Airbox Delete Kit
Aston Martin Vantage Airbox Delete Kit
Couldn't load pickup availability
Give your VH Vantage a noticeably louder induction sound with the Aston Martin Vantage Airbox Delete Kit. This complete system replaces both bulky factory airboxes with four carbon-fibre reinforced polymer components and two Ramair performance filters, making future filter servicing considerably easier.
Significantly lighter than the factory airbox assemblies, it fits without cutting or drilling and takes approximately 30 minutes to install. The conversion is completely reversible. This design has been fitted to AstonDIY’s own Vantage for five years, with approximately 200 kits supplied.
Why replace the factory airboxes?
- More induction sound: hear noticeably more of the intake as you drive.
- A complete airbox replacement: an alternative to replacing cracked or damaged factory airboxes, which can be expensive.
- Easier filter servicing: removes the relatively involved factory airbox arrangement and frees up space in the wheel-arch area.
- Significant weight reduction: replaces the bulky original assemblies with a lighter conversion.
- Integrated bellmouth: a radiused velocity-stack transition is designed to smooth the airflow transition from each Ramair filter into the intake.
- No cutting or drilling: no drilling into the crash cans or anywhere else is required.
Compatibility

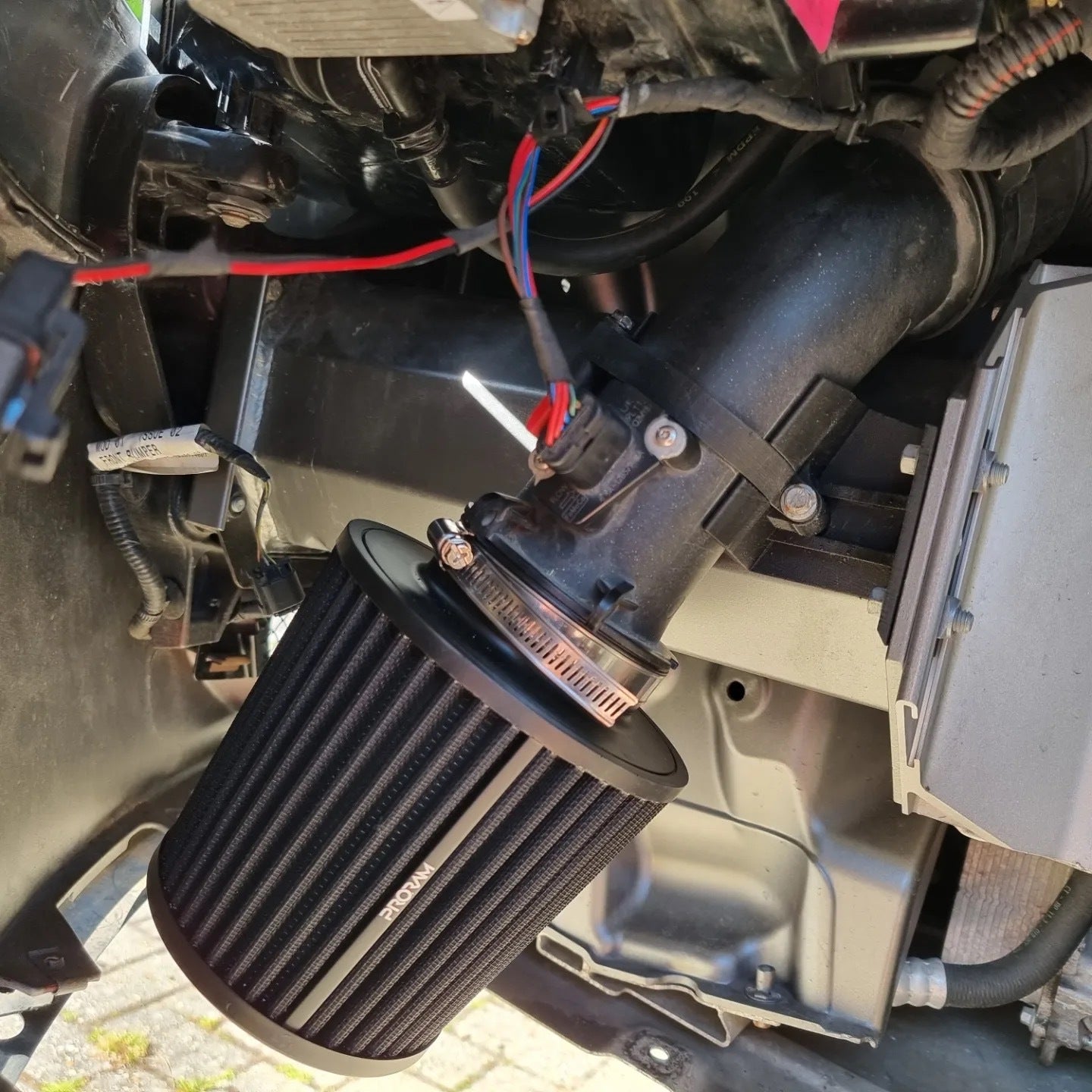

Fits VH-platform Aston Martin Vantage models, 2005–2018, including V8 and V12 variants. This Vantage induction kit retains the original MAF sensors and factory forced-air inlet ducting, and reuses the original Aston Martin hardware.
What's included
The price is for the complete system for both airboxes:

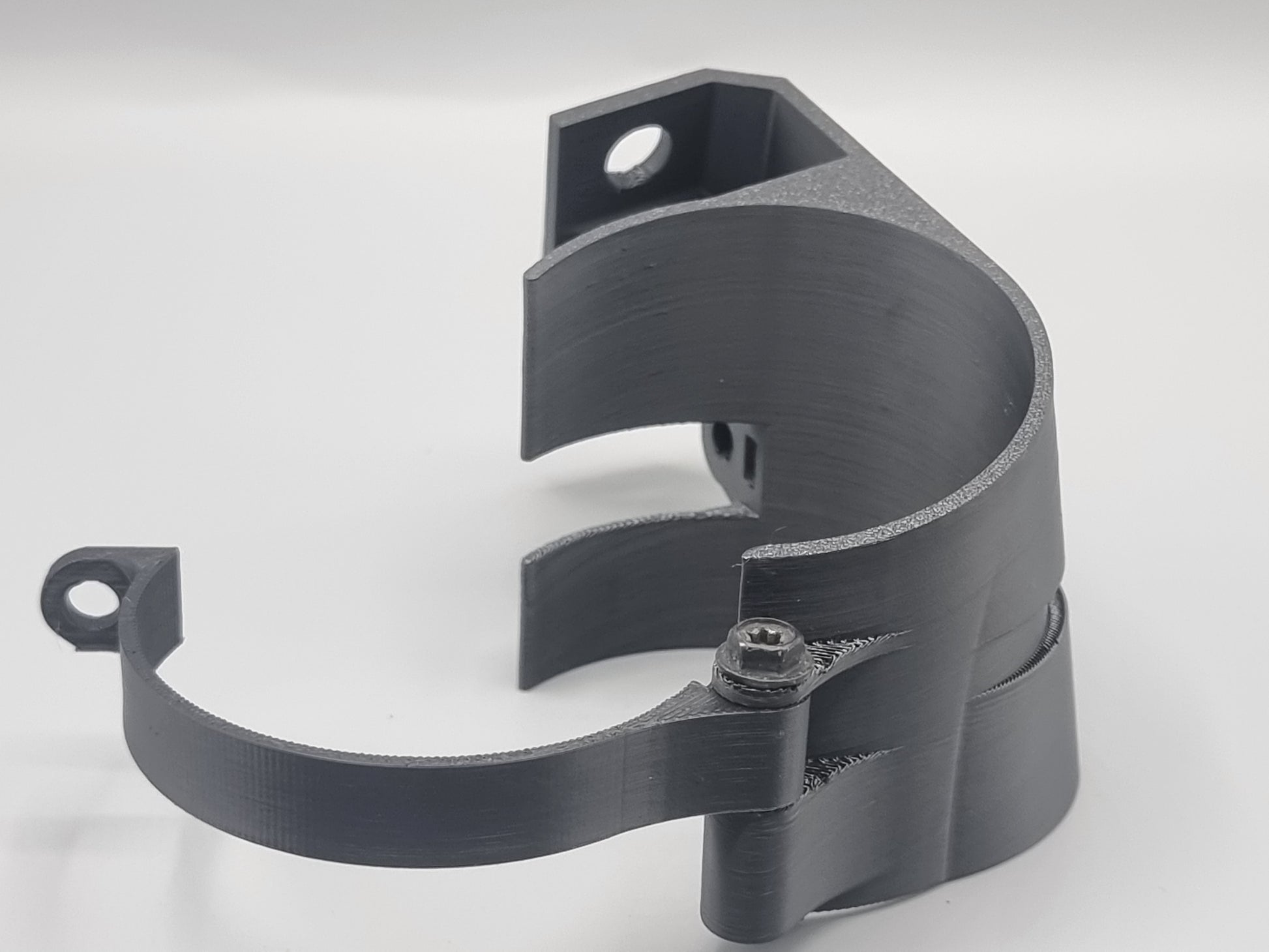

- Four black/dark grey components manufactured from carbon-fibre reinforced engineering polymer.

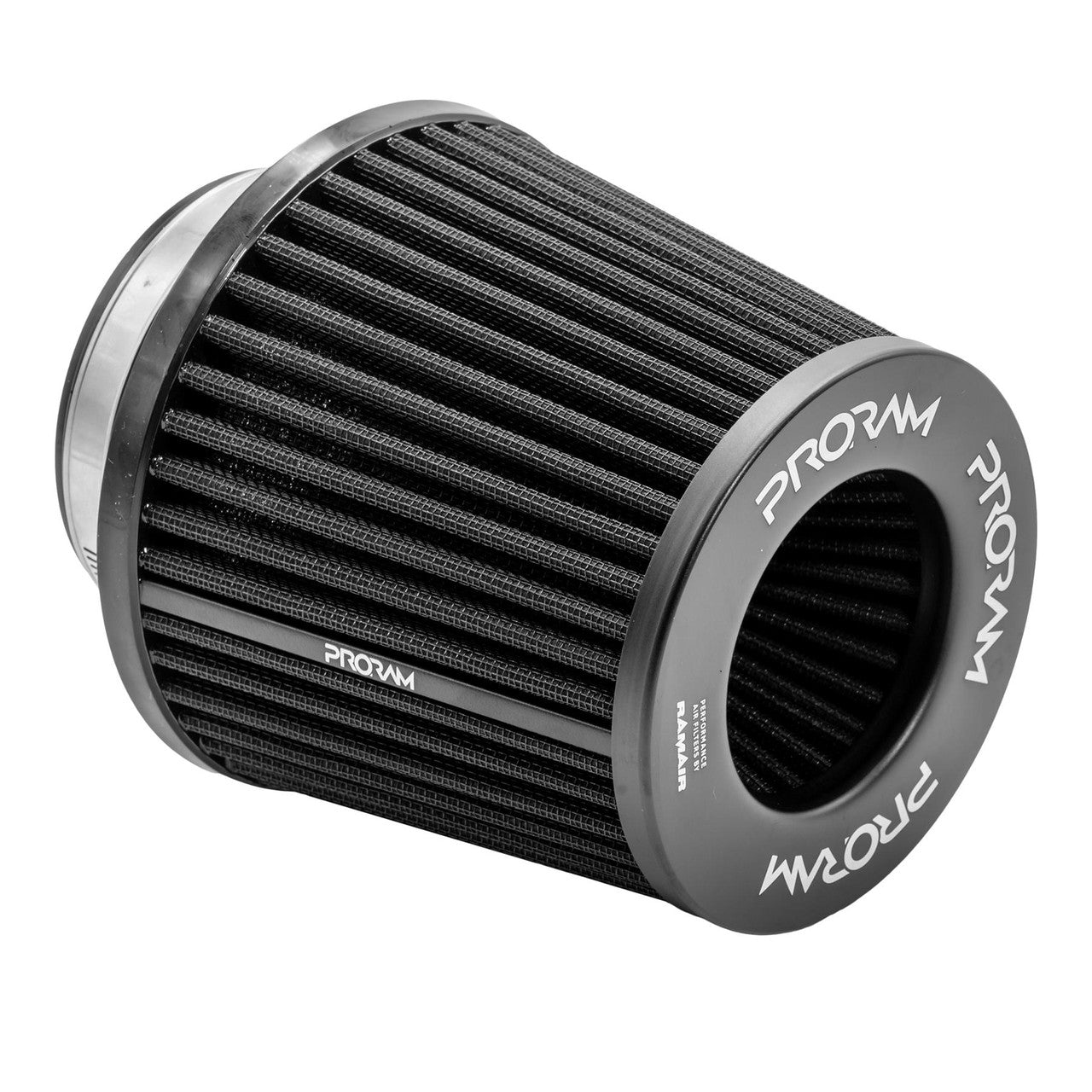

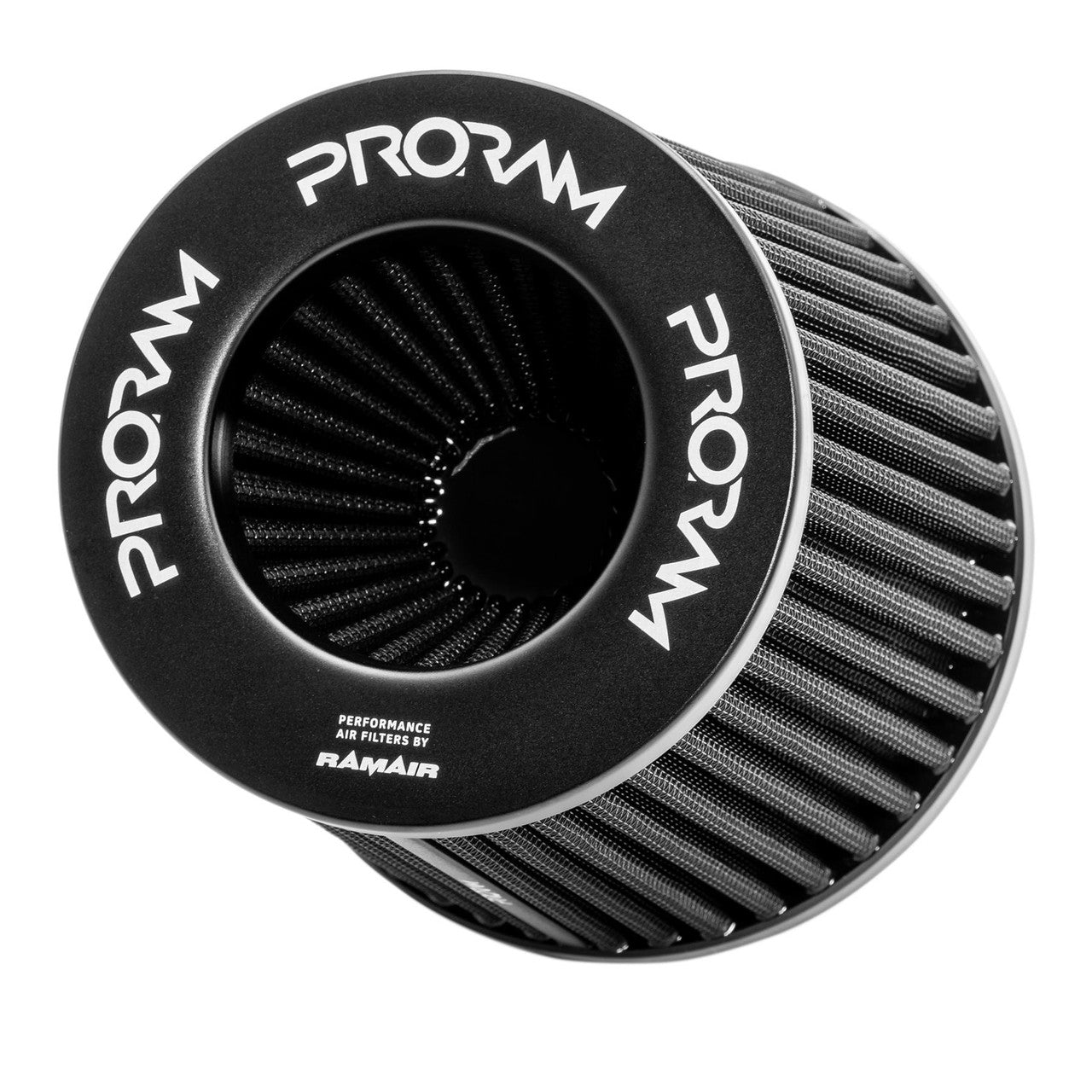

- Two high-quality Ramair PRORAM PR-CC-150-80 filters.
Installation
Allow approximately 30 minutes. No specialist tools, cutting or drilling are required. The conversion reuses your original hardware and is completely reversible to the factory configuration.
No ECU remap or tune is required. Correctly installed, the kit operates without warning lights. For help with fitment or installation, contact AstonDIY for direct product support.
Engineering and manufacture
The high-strength, carbon-fibre reinforced engineering-polymer components are manufactured for dimensional accuracy and repeatability in demanding automotive use. The integrated radiused bellmouth provides a smooth transition between the filter and intake. AstonDIY has not verified a power or airflow increase from this conversion.
Frequently asked questions
Will it fit my V8 or V12 Vantage?
Yes. This kit replaces the Aston Martin V8 Vantage airbox arrangement and also fits V12 Vantage models on the VH platform, covering 2005–2018. Contact us if you need help identifying your model.
Are both filters included?
Yes. Every kit includes two Ramair performance filters and four carbon-fibre reinforced polymer components, providing the complete conversion for both factory airboxes.
Does this intake kit need a remap?
No ECU remap or tune is required. Correct installation retains the original MAF sensors and allows the kit to operate without warning lights.
Does it increase power?

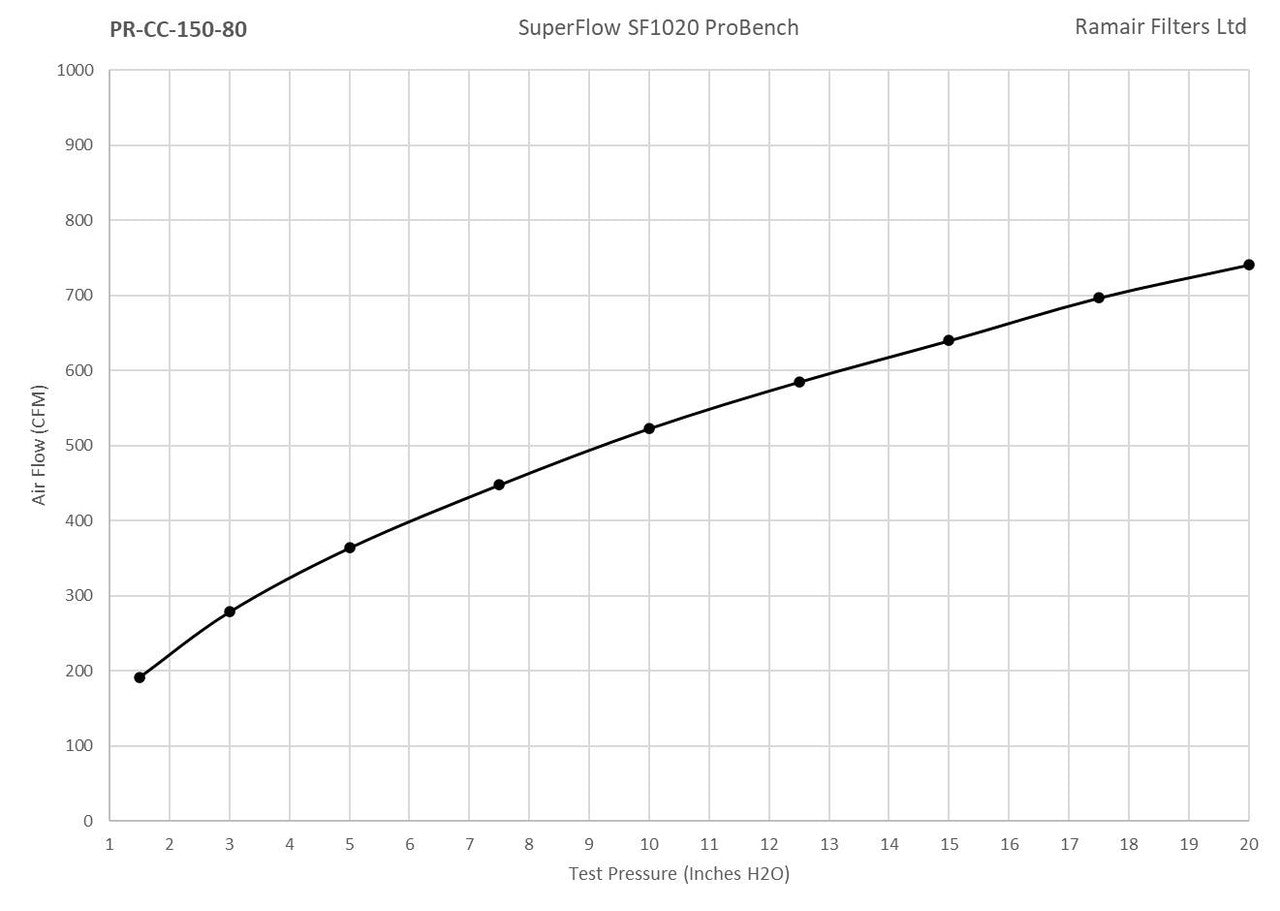

AstonDIY has not verified a performance increase, so no BHP gain is claimed. The main benefits are increased induction sound, easier filter servicing and reduced weight. The filter flow chart in the gallery is not a Vantage power test or evidence of a gain from the complete kit.
What about rain and water ingress?
The design has been used in normal road conditions without water-ingress issues and retains the factory forced-air ducting. As with exposed performance filters, the filters should not be submerged.
Can I return the car to standard?
Yes. The conversion is completely reversible to the factory configuration. It requires no cutting or drilling, including into the crash cans.
Dispatch and delivery
Orders normally dispatch within 3–4 working days, across two dispatch runs each week. See our shipping, taxes and returns information for details.
